PLF-SSP4040 Plate filter 400×400 with stainless steel plates and a pump

Description

Plate filter 400×400 with stainless steel plates and a pump. Available with 11, 19, 29 or 39 pcs of stainless steel plates (frames) for filtration cartons 400×400 mm.

This filtration system involves the use of filter layers “cartons” which are interposed between the plates with frames made of stainless steel. It can be used for a primary and secondary filtration of beer, wine or cider before the bottling process. Sterilizable with hot steam. With a set for the double filtration – the double filtration kit. Can be delivered with SST filter plate holders for double filtration (optionaly).

The filtering machines produced in four variants have the following characteristics:

1. Filter 400×400/11 with 11 pcs of stainless steel plates – maximal flow rate 1100 L/hr (wine) / 300 L/hr (beer)

Filtration surface : 1.7 m²

Dimensions : 1250x700xh920 mm

2. Filter 400×400/19 with 19 pcs of stainless steel plates – maximal flow rate 1500 L/hr (wine) / 500 L/hr (beer)

Filtration surface : 2.9 m²

Dimensions : 1450x700xh920 mm

3. Filter 400×400/29 with 29 pcs of stainless steel plates – maximal flow rate 2900 L/hr (wine) / 800 L/hr (beer)

Filtration surface : 4.5 m²

Dimensions : 1700x700xh920 mm

4. Filter 400×400/39 with 39 pcs of stainless steel plates – maximal flow rate 3500 L/hr (wine) / 1100 L/hr (beer)

Filtration surface : 5.5 m²

Dimensions : 2000x700xh920 mm

Stainless steel frames

Stainless steel plate frames are a professional solution for the beverage filtration – they are sanitable chemically with hot steam sterilization, usable for double filtration (coarse filtration +  micro filtration)

Properties of all types :

• AISI 304 stainless steel filter frame
• Input/output fittings DN40

Standard accessories :

• Sight glass
• Centrifugal pump

Optional accessories :

Spare plate – noryl 400 x 400 mm … € 49 / pc

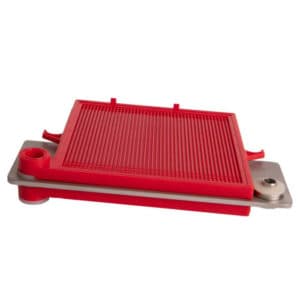

Double filtration plate adapter … € 349 / pc

Rubber ring plateholder head/end … € 15

PLATE KIT FOR DOUBLE FILTERING

The double filtration kit it is intended to divide the plate array to two parts. On one hand the customer will put a filtering cartons of one type (basic filtration) and on the other side it will put a filtering carton of another type (fine filtration).

Why choose a plate filter for the beverage filtration ?

Beverage filtration through a plate filter is the cheapest and easiest way to get rid of most live yeast in beer or cider. It is used in microbreweries of a small and medium size, for which the cost of the equipment is a primary decision parameter.

These filters are made from stainless steel therefore resist to extent aggressive substances. They consist of two end steel plates ,one of which is slidable on guide pins , controlled by the pressure screw or hydraulic element. Among them there are stainless steel frames with filter cellulose pads (cartons) of the choosed porousity and number of the plates according to the required purity and overall flow capacity of the filtered liquid.

During passage of beverage through the filtration plates the impurities contained in the beverage are captured. The flow rate gradually decreases, depending on the saturation of the filter plates by the impurities (yeasts).

Plate filter is mobile on castors and it is equipped with a control pressure gauges, air-outlet valve and flow taps made of stainless steel. The filter allows continuous filtering and dual filtering with different purity grade using two types of cartons in one pass through the filter body . It is a convenient way especially in terms of lower workload of beverage and easier to easy work.

Advantages of a plate filter:

• Low cost of purchasing
• Easy to use
• Using both primary and secondary filtration – choice of filter elements

Disadvantages of a plate filter:

• Higher cost of consumables in comparation with the kieselguhr filters – the filter cartons are intended only for several use
• It is necessary to disassembly entire filter after its every use, to remove the filter plates and also to do the full cleaning and sanitizing of the filter
