PDP-SS1000 Pneumatic stainless steel diaphragm pump 6.00-9.36 m3/hr

Description

Verderair HI-CLEAN VA-H25SA ST TF TF T4 FD Pneumatic stainless steel diaphragm pump for feedeng beer or cider to the filler, hop extractor or other equipment for product finishing. This device works without electrical consumption – it needs only pressure air and a pressure reduction valve. Minimalized mechanical impact on beer. Pump volume power : 100 – 156 liters / min. (6.00 – 9.36 m3 / hour)

This pump includes a certificate for use with food processing – ATEST EN 1935/2004.

Parameters :

Pump volume power : 100 – 160 liters / min. (6.0 – 9.36 m3 / hour)

Pressure of air : 3-8 bar

Weight : 25 kg

Suction lift  : Dry 4.8 mwc / Wet 8.8 mwc

Temperature : 4°C – 104°C

Max. particle size : 3.2 μm

Max. viscozity : 12000 mPas

No electric connection – the pump is fully powered by pressed air

Material :

Fluid section : Stainless Steel AISI 316, Ra=3.2 μm

Air section : Aluminium (is not in contact with fluid / food / beverage)

Casing : Stainles Steel AISI 316 / PTFE

Valve seat : SS seat with PTFE o-rings

Check valve ball : PTFE

Diaphragm membrane : 2x PTFE

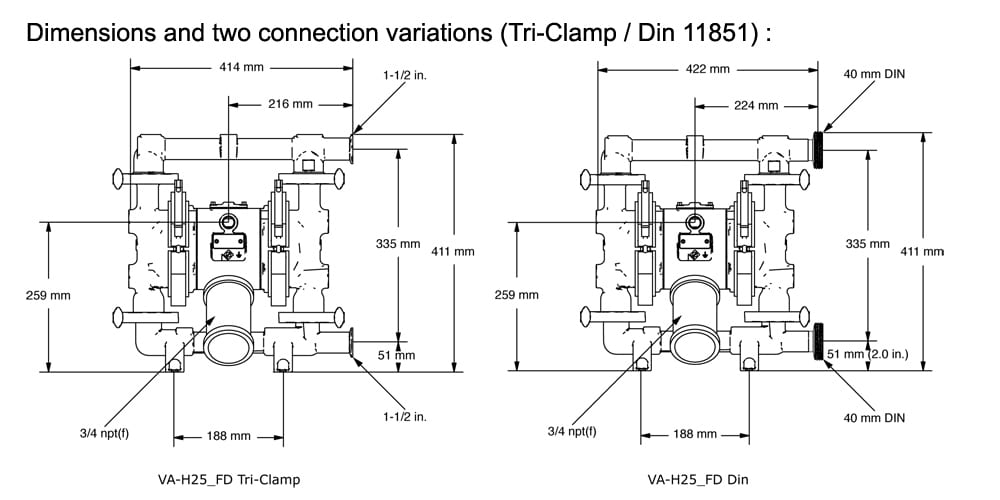

Fluid connection :

Liquid : DIN 11851, DN40, male  / DIN 32676, Tri-Clamp DN40 1 1/2”

Pressure air : 1/2″ NPT(F)

Certificates : CE + ATEX + FDA

Pump style : FD = Food grade design
