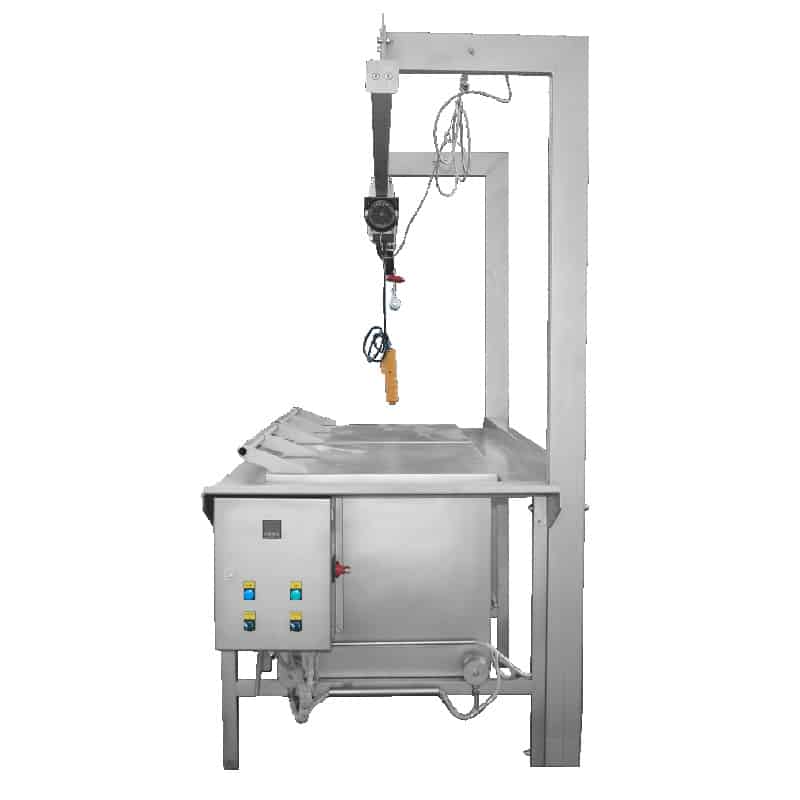

PBA-400MG : Bottle submersible pasteuriser

Description

Perfect solution for the small to medium sized beer or cider producers. The PBA-400MG is a water bath-based pasteuriser that uses an electrically heated water system to heating of filled and closed bottles to the desired pateurisation temperature. Pasteurizing capacity up to 400pcs of 1-liter bottles per hour (two batches per 200 bottles). Real capacity depends on the bottles shape and their volume.

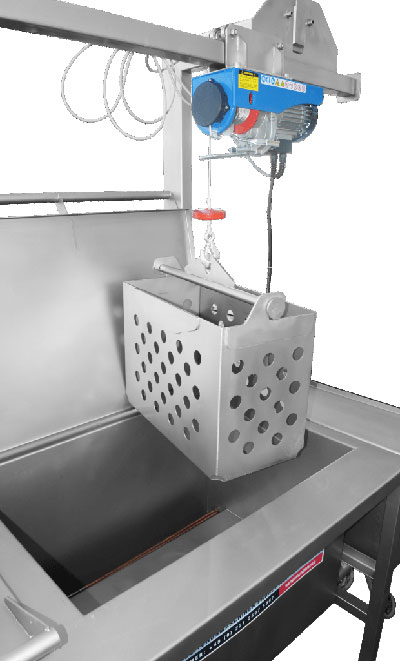

The PBA-400MG pasteuriser is an ideal solution for pasteurising of cold-filled bottles. It has a capacity of 2x 200 liters (approximately 200pcs x 1 litre bottles per batch or greater capacity for smaller bottles). The bottles are manually placed into steel box and then they are dived in the hot water bath (using the crane integrated). You can set the pasteurisation temperature and time via a digital display. Then bottles are moved from the hot water bath into the second bath with cold water that cools the bottles to final temperature. The pasteurize process is semiautomatically controlled.

The second bath can be used either for the cooling the bottles after the heating or as the secondary heating bath without the cooling cycle.

The set includes :

• Pasteurizer with two baths (2x 200 liters)
• 6pcs of the steel submersible boxes for bottles
• Lifting electric motor crane with guide rail for easy handling with the steel boxes

Optional equipment :

• Steel tables for temporary putting and easy handling with the boxes …  450 Eur / 2 pcs
• Both baths equipped with the heating system (+24kW) …. 390 Eur
• Additional steel submersible boxes for bottles … 790 Eur / pc
• Enlarged crane line with overlaps above both table … 160 Eur

Basic version without the stainless steel tables and with one heated bath:

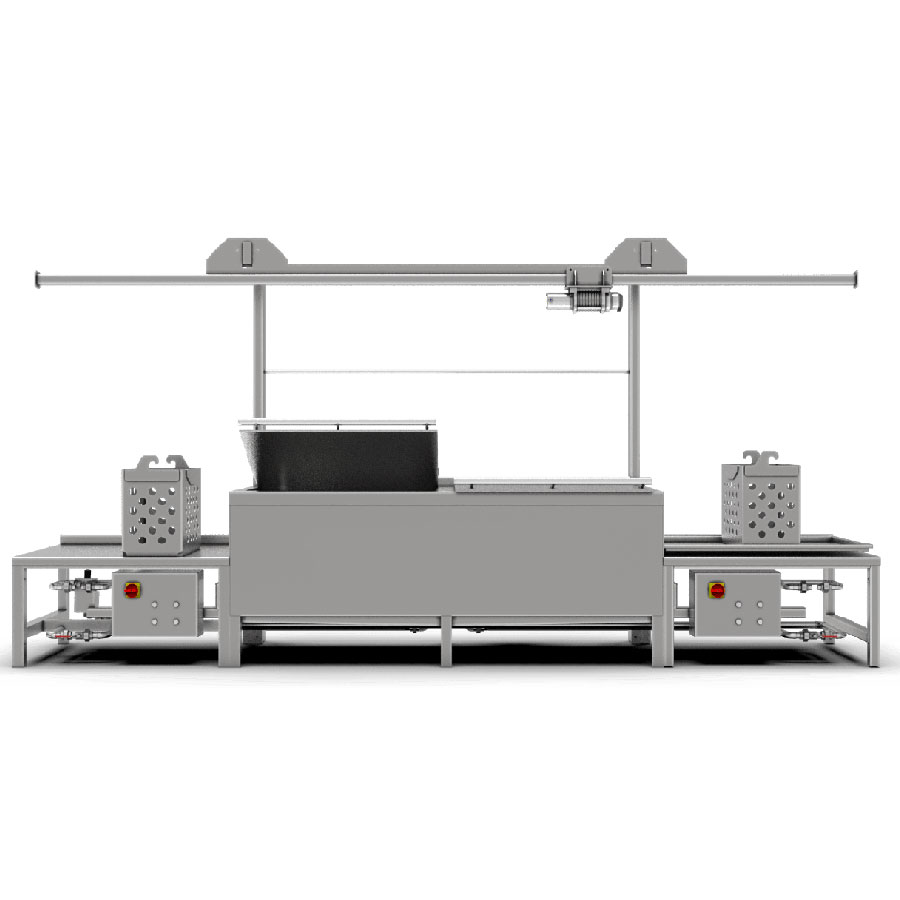

Expanded version with the stainless steel tables and two heated baths :

Key Features:

• All stainless steel construction
• Programmable pasteurisation temperature and time via a digital display panel

Specification:

Dimensions of the pasteuriser without the stainess steel tables (standard version) :

Dimensions of the pasteuriser with two stainless steel tables (optional version) :

Dimensions of the steel submersible box for bottles :
