HMHT-1000 Mixing homogenizing tank for 1000 kg of honey

Description

HMHT-1000 is non-pressure stainless steel tank equipped with the agitator. This device is designed for mixing and homogenizing of honey, or similar solids in liquids. We recommend the HMHT-1000 tank to dilution and mixing of honey or food and beverage concentrates, such as concentrates for the production of soft honey drinks.

The honey mixing-homogenizing tank has usable capacity 1000 kg of honey and is made of stainless food steel DIN 1.4301 (AISI 304).

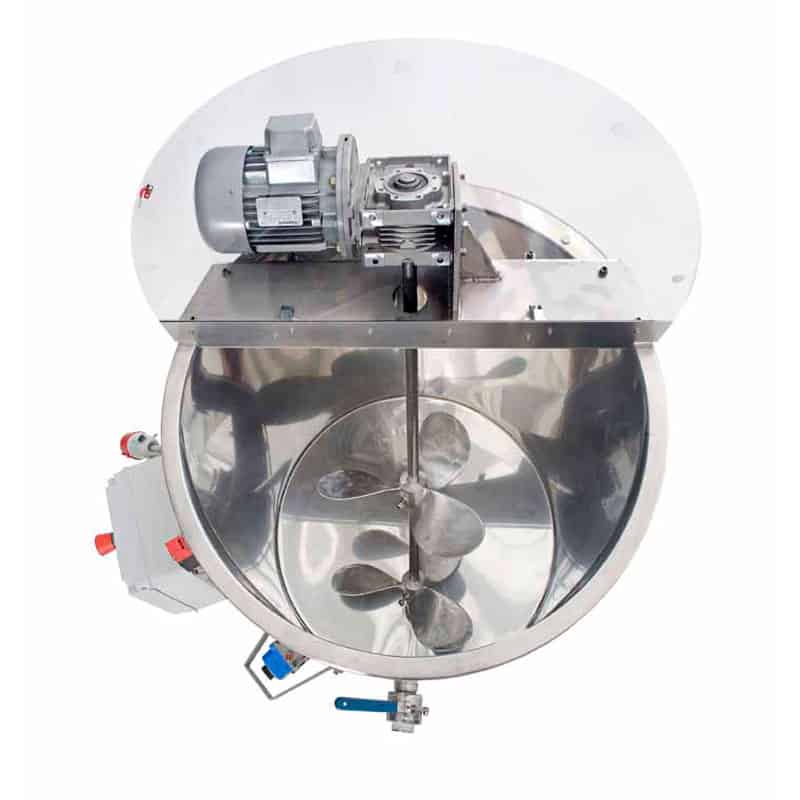

Double-walled electrically heated tank blender for homogenization and mixing of honey. The stainless steel propeller is fitted on an inclined shaft and is height adjustable so that it can mix also when the tank is not full. The bottom of the inner tank is inclined towards the outlet so the honey can easily drain out. The lid is fitted with an electric safety lock to prevent opening while the machine is operating. Stainless steel ball valve 2 inches is built in at the lowest point of the tank. The homogenizer is made entirely of materials appropriate for production foods. Available without a stand, the stand can be made by included on request.

Technical data:

• Usable capacity: 1000 kg of honey ( 550 liters)
• Motor: 3ph 400 V/ 50 Hz, power 1.150 W
• Rotation speed: 50 n/min
• Heating power: 3.000 W
• Container size: inner diameter ca. 95 cm, outer diameter ca. 105 cm
• Height: approx. 130 cm
• Weight: 165kg
