GSG-150 Gas steam-generator 150kg/hr (115 kW)

Description

Automatical gas steam-generator GSG-150

with power 115 kW / 97000 kcal/hr (from 75 to 150 kg of hot steam per hour), steam pressure in range from 1 to 5.0 bar

Automatic gas steam-generator, available power 115 kW – The production capacity from 75 to 150 kg of hot steam per hour. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 5.0 bar. The steam-generator shell is manufactured in accordance to the current PED regulations.

Made in Italy

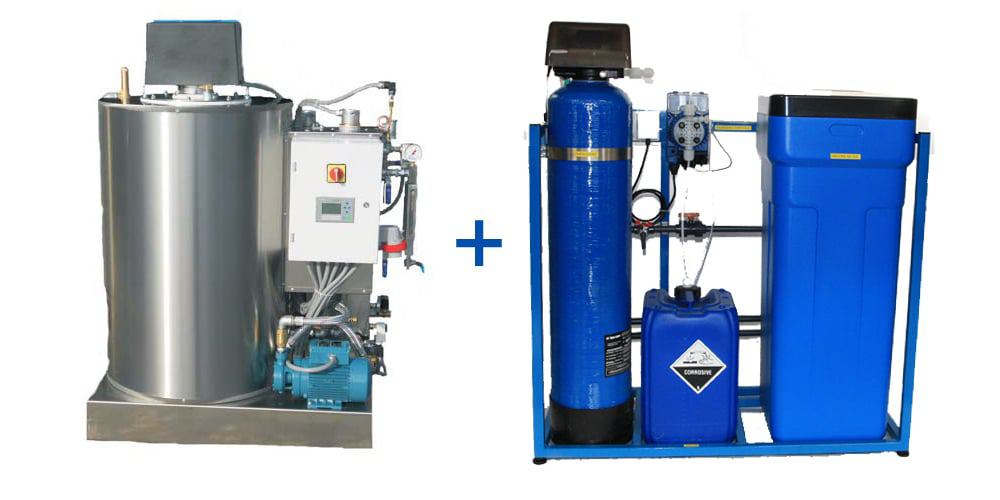

The complete hot steam system with the water softener includes :

Recommended usage :

• Heating of brewhouses – recomended for brewhouses with maximal usage volume from 300 to 600 liters per one brew
• Heating of hot water in heat water tanks – boilers
• Sterilization of vessels, pipes, hoses and food equipment or farmacy equipment by hot steam

Parameters and accessories :

• Heating 115 kW  / from 75 to 150 kg of hot steam per hour
• Working pressure and temperature of steam max. 5.0 bar / 155°C
• Gas consumption : 11.5 kg per hour (3.6 m3 / hr)
• Gas pressure : from 2 to 36 kPa
• Electric power consumption : 0.75 kW
• Water treatment plant with automatic regeneration included
• Stainless steel condensate tank
• High temperature pump
• High efficiency burner – min. 92%
• Boiler body in stainless steel AISI 304
• All components in contact with water in stainless steel AISI 304
• Power supply 400/3 50Hz + N/50 Hz
• Chimney diameter : 180 mm
• Gas input : 3/4″
• Water input : 1/2″
• Water automatic drain output : 3/4″
• Water manual drain output : 1/2″
• Steam output : 1/2″
• Working temperature + 5 ÷ + 80 °C
• Gas appliance type : open combustion chamber (room air supply) – forced air exchange
• Flue gas discharge – overpressure burner, direct flue without draft interrupter
• Net dimensions 1200 x 700 x 1400 mm.
• Net weight 350 Kg
• Overall dimensions (packaging included) 1400 x 1200 x 1700 mm
• Gross weight (packaging included) 400 Kg

Benefites :

• Compact design on a variety of stainless steel – does not require any installation work.
• Easy connecting to the media (gas event. light fuel oil, water, electricity, steam exhaust, chimney, condensate outlet)
• Stainless steel feed water tank with pump, control the water level and temperature, incl.all valves, closing and locking components.
• Steam production within a few minutes

Instalation : Installation and assembling of the gas steam-generator performs each specialist company authorized for installation of gas appliances. The customer receives detailed installation instructions in the manual.

Warranty : 12 months

Delivery time : from 4 days to 6 weeks (according store status)

Certificates: CE + PED 97/23/CE
