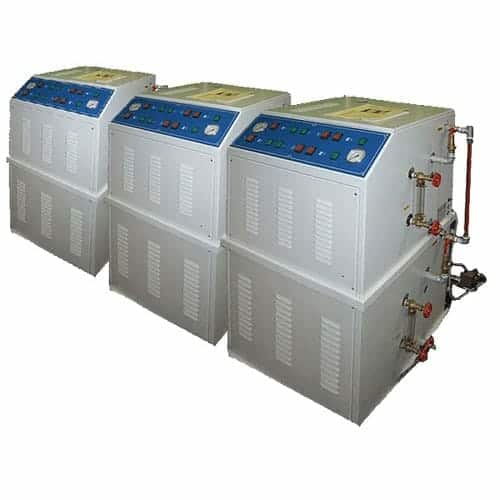

ESG-450 : Electric steam-generator 50-300kW / up to 390-450kg/hr | pressure from 2 to 6 bar

Description

Automatic electric hot steam-generator (set of the 3x ESG-150) / steam pressure from 2 to 6 bar

– with capacity from 50 kW up to 300 kW (from 75 up to 450 kg of hot steam per hour) – if returned condensate is reused

– with capacity from 50 kW up to 300 kW (from 65 up to 390 kg of hot steam per hour) – if condensate is not reused

Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 2 to 6 bar.

This steam-generator set is available with twelve independent heaters (twelve independent heating elements). The steam-generator shell is manufactured in accordance to the current PED regulations.

Made in Italy

Recommended usage :

• Heating the wort brew machines – recomended for brewhouses with maximal usage volume 5000 liters per one brew
• Heating the water, beverages or chemical solutions in the water tanks, CIP stations, boilers, pasteurisers etc.
• Heating the food processing machines
• Sterilization of the vessels, pipes, hoses, stainless steel kegs, filters, food production equipment, farmacy equipment … with hot steam

Parameters and accessories :

• Power from 50 kW to 300 kW
• Steam production capacity from 75 to 450 kg of hot steam per hour – if returned condensate is reused
• Steam production capacity from 65 to 390 kg of hot steam per hour – if returned condensate is not reused
• Working pressure and temperature of steam max. 6 bar / 155°C
• Water treatment unit with automatic regeneration – capacity of ionex 80 liters
• Particulate filter
• Stainless steel condensate tank
• Four sets of heaters.
• High temperature pump – 6pcs
• Sound intensity level < 75 dB(A)
• Boiler body made of steel (optionaly stainless steel AISI 304)
• Boiler capacity 6×57 L
• Boiler heater 25 – 360 kW
• Safety overpressure valve 7 bar
• Adjustable relief valve fot outgoing steam
• Built-in electric switchboard cabinet
• Built-in centrifugal pump
• Power supply 230/400V – 3ph – 50 Hz
• Working temperature + 5 ÷ + 80 °C
• Net dimensions 3000 x 800 x 1200 mm.
• Net weight 1000 Kg
• Overall dimensions (packaging included) 3200 x 1000 x 1500 mm
• Gross weight (packaging included) 1200 Kg

Warranty : 12 months

Delivery time : from 3 days to 6 weeks (according store status)

Recommended accessories

Recommended set of spare parts to ensure non-interupted functionality in operation …. 2990 Eur

This set includes :

• Electric heating element 25 kW + gasket … 4 pcs
• Main contactor … 2 pcs
• Fuse 50A … 12 pcs
• Glass pipe (fill level indicator) … 4 pcs
• PQM pump … 2 pcs
• Pressure switch … 2 pcs
• Pump solenoid … 2 pcs
• Boiler float + gasket … 2 pcs
• Condensate tank float … 1 pc
• Valve of the filling level indicator … 2 pcs
• Condensate tank thermostat … 1 pc
• Manometer 0-10 bar … 2 pcs
• One no-return valve … 2 pcs

Stainless steel basic frame for the installation in wet space … 420 Eur

• Stainless steel frame under the steam generator with adjustable feet
