BLM-SA802 Two-side semiautomatic bottle labelling machine

Description

Semiautomatic bottle labelling machine for applying Two Self-Adhesive labels

BLM-SA802 is a semi-automatic bottle labelling machine what is able to glue both front and back label during the same cycle. Productio capacity up to 800 bottles per hour.
This machine allows to label cylindrical glass bottles and containers made of synthetic materials. With appropriate options it is possible to read reference marks, to glue a label, to label also squared bottles, to glue transparent labels, to equippe the machine with the stamping unit for marking with date and number of batch, and so on.

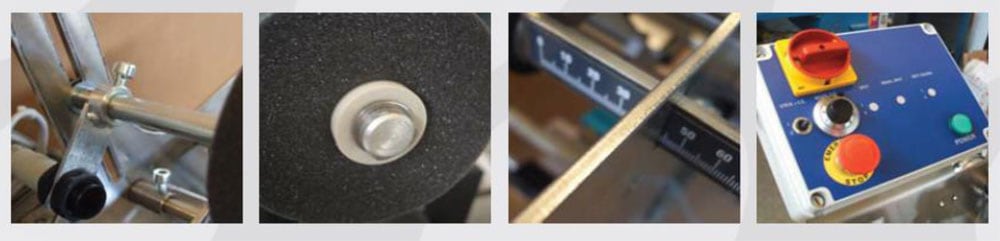

The machine has an essential stainless steel frame and a ribbed roller for fix of the label paper with quick releasing.
It is in conformity with EC safety standards and the electronic board with microprocessor enables to use different labelling variants.
The basic version includes two positions for rollers with paper labels.

CHARACTERISTICS:

• Dimensions 550 mm x 400 mm x 500 mm (h)
• Weight 40 kg
• Voltage EU 230 V/ 50 Hz (opt.: US 110 V/ 60 Hz)
• Installed power 0,2 kW
• Sound level 40 decibel
• Hourly production capacity – up to 800 bottles per hour
• Maximal label lenght 280 mm
• Maximal label height 140 mm (opt.: 190 mm)
• Cylindric bottle diameter 50 mm › 120 mm (opt.: 20 mm/200mm)
• Square bottle side (opt.) 35 mm › 100 mm

Optional accessories :

SQUARE BOTTLE ADAPTER

Accessory for labelling of square bottes …  870 Eur

LABEL PRINTER KIT

Accessory for printing of date and number of batch :

• Ink printer… 1500 Eur
• Thermotransfer printer … 2960 Eur
